Product |
T5
Batten / Seamless Illumination |
|||||||||||||||||||
|
Lighting |
||||||||||||||||||||
|
|
|
|||||||||||||||||||
|
Benefits
Features: 1. Seamless Illumination can offer
seamless direct and indirect
lighting 2. Space-saving and compact design.

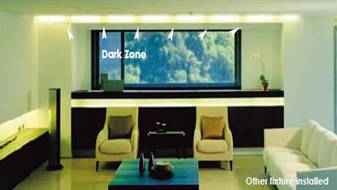

They can be installed in a whole line to create uniorm
brightness without any dark zone. The only fluorescent lamp that
lights from end to end can light. Uniformly without any dark
zone in contunuous rows because no ends on both end. 3. Great improvement on the length
of the tubes and choices for colors |
|
|||||||||||||||||||
|
4. Made of solid state of
hydrargyrum and wth the function of environmental protection. 5. Excellent for infirect lighting.
Direct lighting. Sign boards lighting. In industrial lighting. Arcgitectural
lighting. Indoor lighting such
as office. Supermarkets. Hospitals etc.. 6. Various lengths for your choices
: 280mm, 550mm, 850mm, 1150mm also different lengths can be combined together
to from channel
lighting. |
||||||||||||||||||||
|
Exteneral
Design |
||||||||||||||||||||
|
|
|
|||||||||||||||||||
|

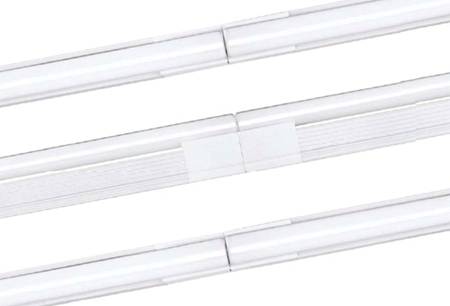

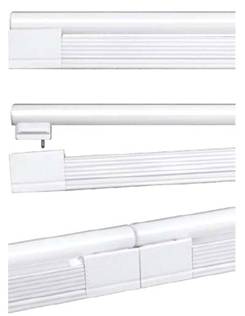

External view |

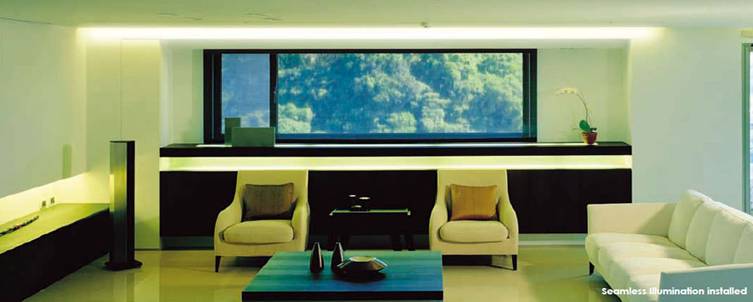

Scene of lamp installation |
|||||||||||||||||||
|

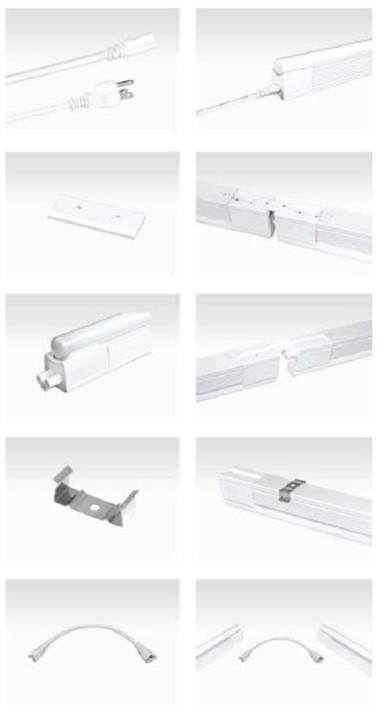

Accessories |
|
|||||||||||||||||||
|
|
POWER
PLUG HORIZONTAL
CONNECTOR PLUG
CONNECTOR INSTALL
CLIP PLUG
CONNECTOR WTH CABLE |
|||||||||||||||||||
|
Technical Details |
||||||||||||||||||||
|
|
||||||||||||||||||||
|
Model No |
Watt |
Input |

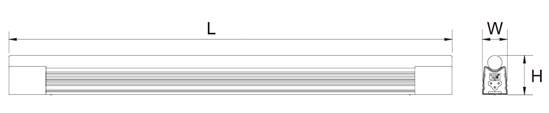

L (mm) |
W(mm) |
H(mm) |
Diameter |
Current |
Pack Unit |
||||||||||||
|
ST-LL08V2A |
8W |
22-240V Or 100-130V 50/60Hz |
280 |
26 |
38 |
16 |
0.15 |
25 |
||||||||||||
|
ST-LL14V2A |
14W |
550 |
26 |
38 |
16 |
0.15 |
25 |
|||||||||||||
|
ST-LL21V2A |
21W |
850 |
26 |
38 |
16 |
0.15 |
25 |
|||||||||||||
|
ST-LL28V2A |
28W |
1150 |
26 |
38 |
16 |
0.15 |
25 |
|||||||||||||
|
1. Frequency range: 50/60Hz 2. Voltage: 110-240V 3. Power Factor: >97% 4. EMI test: EN55015 5. Class of protection II 6. Degree of protection: IP20 7. 2 years ballast gurantee, 1 year
for lamp guarantee 7. Lamp & accessories basic
accessories do not need to by it extra |
Seamless Illumination conststs of
hig power built-in ballast and fluorescent tubes. It is an excellent lighting
solution for a display shelf, cove lighting and under bar feature lighting Followings tubes are available upon
requests: 2700K, 4000K, 5000K, 6500K |
|||||||||||||||||||
|
|
Many T5 products are under development or at
testing stage for an inquiry Regarding any of our products, please contact
DSTiTAC at lighting@dstitac.com |
|
||||||||||||||||||
|
|
|
|
|
|
|
|
||||||||||||||
|
||||||||||||||||||||
