[ DRAIN INSTALLATION ]










Name of part







Plastic Filtering Net

Over Flow Filter







Drain Fitting Trap

Over Flow Bolt







Fastening Cover









Upper Water Pot P.K

Sink Bowl







Drain Fitting Trap

Over Flow Hose







Over Flow

Drain Hose







Over Flow P.K

Drain Fitting Cover







Over Flow P.K

Decodrizing Cap

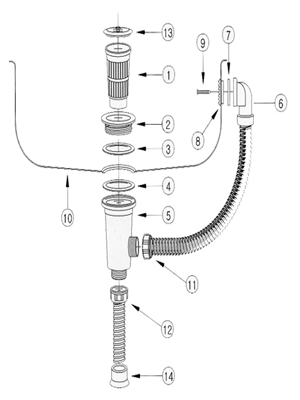

Process for Assembling







1. After inserting (2)to(3), set them into(10)







2. put(4)to(2)







3. Assemble (5)with(2)







4. After putting (7)with(6), set them into(10)







5. After assembling (8)with(6), fix(9), fix(9)to(8)







6. Assemble (11)with(5)







7. Assemble (12)with(5) 8. Put (14)to(12)
